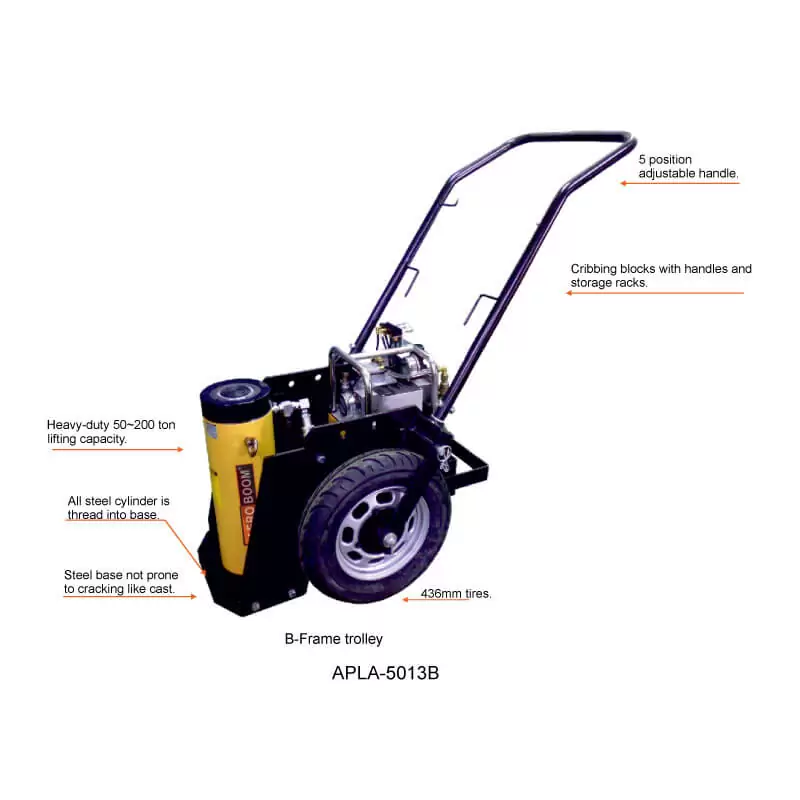

APLE A Series 1

Portable High Tonnage Jack

APLE/A Series

Capacity: 50 – 200 TON
Stroke: 334 mm
700 Bar (10,000 psi)

  • Adjustable, ergonomic handle.
  • Handle tilts to start the job and is easily locked/ unlocked without moving from operating position.
  • Railroad Edition.

Description

Download

Model No. Cylinder Power Unit Trolley Type Valve Dimensions (mm)
A B C D E F G
APLE-5013 ARSR-5013
Cap.: 498kN Stroke:334mm
APE-554TQJ
1-1/8hp
230V 10.7A
50/60Hz
Single Phase
Max. Press
700 bar
-Pail trolley Manual
4W3P
valve
1538 850 1592 659 660 458 52
APLE-5013B B-Frame trolley
APLE-10013 ARSR-10013
Cap.: 933kN Stroke:333mm
-Pail trolley
APLE-10013B B-Frame trolley
APLE-15013 RSR-15013
Cap.: 1386kN Stroke:333mm
-Pail trolley
APLE-15013B B-Frame trolley
APLA-5013 ARSR-5013
Cap.:498kN Stroke:334mm
APA-554TQJ
4hp
Air press 3-8 bar
Max. Press
700 bar
-Pail trolley 1494 764 1384 712 911 583 71
APLA-5013B B-Frame trolley
APLA-10013 ARSR-10013
Cap.: 933kN Stroke:333mm
-Pail trolley
APLA-10013B B-Frame trolley
APLA-15013 ARSR-15013
Cap.: 1386kN Stroke:333mm
-Pail trolley
APLA-15013B B-Frame trolley

Cribbing Blocks Model No. Dimensions (mm) Capacity tons Jack Module Ext. Total stack Ht. Wt.(kg)
A B C
AKAPLE5013-A01 38.5 44.5 139.7 50 173.0 515.9 16.3
AKAPLE5013-A02 76.5 82.5 139.7
AKAPLE10013-A01 38.5 44.5 187.3 100 177.8 527.4 30.9
AKAPLE10013-A02 76.5 82.5 187.3
AKAPLE15013-A01 38.5 44.5 222.2 150 168.3 511.2 38.6
AKAPLE15013-A02 76.5 82.5 222.2
AKAPLE20013-A01 38.5 44.5 254.2 200 168.3 511.2 38.6
AKAPLE20013-A02 76.5 82.5 254.2

Jack Module Ext. Model No. Dimensions(mm) Wt.(kg) tons
A B C D E F G H
AKAPLE5013-A03 223.8 173 127 72.5 1″-8UN 79.5 66.8 92.2 9.5 50
AKAPLE10013-A03 228.6 177.8 174.6 95.2 1-3/4″-12UN 76.2 98.4 95.0 18.2 100
AKAPLE15013-A03 219.2 168.4 203.2 114.3 3-3/8″-16UN 114.3 88.9 22.7 150
